| Sr.No. | Equipment(s) |
|---|---|
| 1. | XCMG 180 – Already Put |
| 2. | ZOOMLION ZR185A – Already Put |
| 3. | MAIT HR180 |
| 4. | MAIT HR130 |
| 5. | CASAGRANDE B180 |
| 6. | CASAGRANDE B170 |
| 7. | CASAGRANDE B125 |

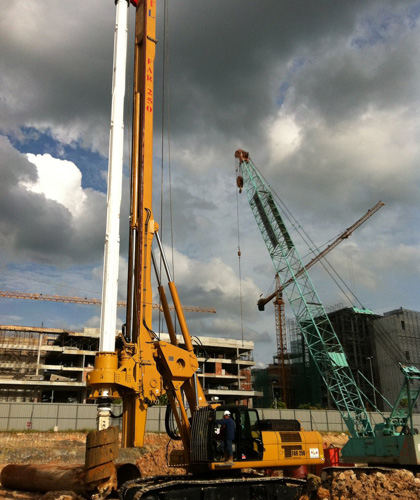

Hydraulic Rig, with capability of drilling from 600mm to 1800mm in dia. Depth- 44 Mtr.
| PROJECT | UNIT | PARAMETER |
|---|---|---|
| Max. Drilling Diameter | ||
| Uncased | (mm) | Ф 1800 |
| Cased | (mm) | Ф 1500 |
| Max Drilling Depth | (m) | 45 |
| Dimension | ||
| Working condition L x W x H | (mm) | 8350 x 4200 x 20480 |
| Transportation condition L x W x H | (mm) | 14255 x 2960 x 3450 |
| Overall Drilling Weight | (t) | 56 |
| Engine | ||
| Model | - | CUMMINS QSB6.7-C260 |
| Rated Power | (kW) | 194/2200 |

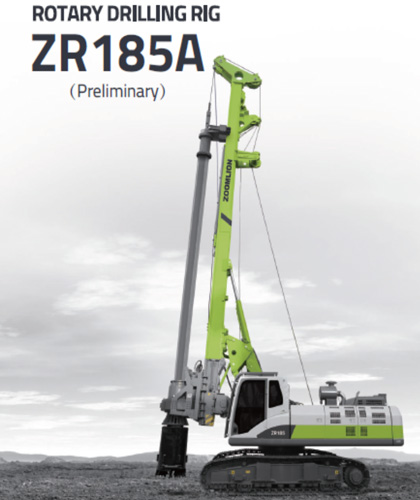

Hydraulic Rig, with capability of drilling from 600mm to 2000mm india. Depth – 48 Mtr
| Name | SPEC. |
|---|---|
| Torque (KN.M) | 188 |
| Drilling Diameter (mm) | 1800 |
| Drilling | |
| Inter-locking | 48 |
| Friction | 62 |
| Drilling Speed (r/min) | 5-28 |
| Engine Model | Cummins 6C 8.3 |
| Rated Power (kw) | 186 |
| Rated Engine Speed (r/min) | 2000 |
| Max. Crowd Force (kN) | 180 |
| Max. Crowd Cylinder Pull (kN) | 190 |
| Line Pull (main winch) (kN) | 185 |
| Line Speed (main winch) (m/min) | 65 |
| Line Pull (aux. winch) (kN) | 70 |
| Line Speed (aux.winch) (m/min) | 51 |
| Operating Mass (t) | 58 |
| Traction Force (kN) | 365 |
| Diesel Tank (L) | 560 |
| Rope diameter (Main winch) (mm) | 28 |
| Rope diameter (auxiliary winch) (mm) | 18 |
